| Резервни части за скутери и мотоциклети / Motorcycles & scooters products, spare parts | Пиаджо – Джилера / Piaggio - Gilera | Запалване / Ignition | Магнет, Плочка с бобини / Generator, Stator
Аlternator assy /Stator - 6 coil - 4 cables, Ø-82mm/ - 12V (Stator bell (Rotor) Ø-83mm) RMS
RMS No.: 246360052
OEM No. Aprilia: 82852R
Applicable to:
APRILIA:
Aprilia RS 50 2006-2010 PL000\RG000
Aprilia RS4 50 2011-2013 TK000
Aprilia RS4 REPLICA 50 2014-2016 TK000\VX000
...
Доставно тегло: 1,300 кг

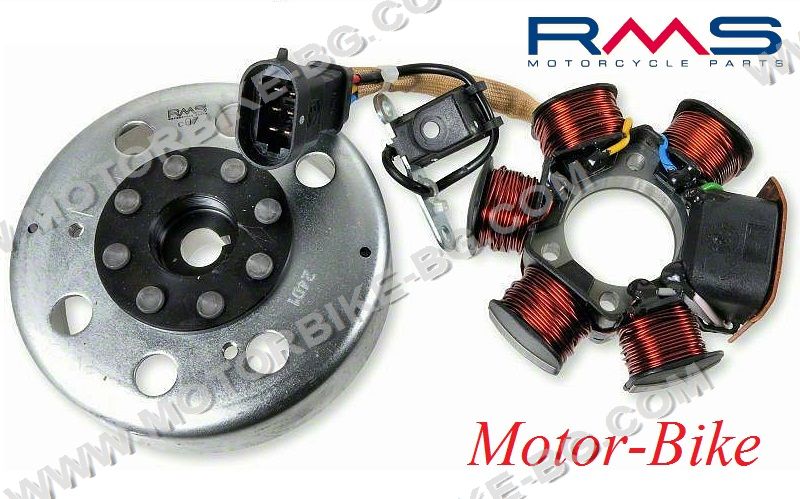

Аlternator assy /Stator - 6 coil - 6 cables, Ø-96mm/ - 12V (Stator bell (Rotor) Ø-98mm) RMS
RMS No.: 246360072
OEM No.: 58136R (830296 + 584526)
Applicable to:
APRILIA:
Mojito Custom 2T Motore Piaggio 50 2004-2010
Sport City One 2T 50 2008-2011
Sr Iniezione / Carburatore 5...
Доставно тегло: 1,700 кг

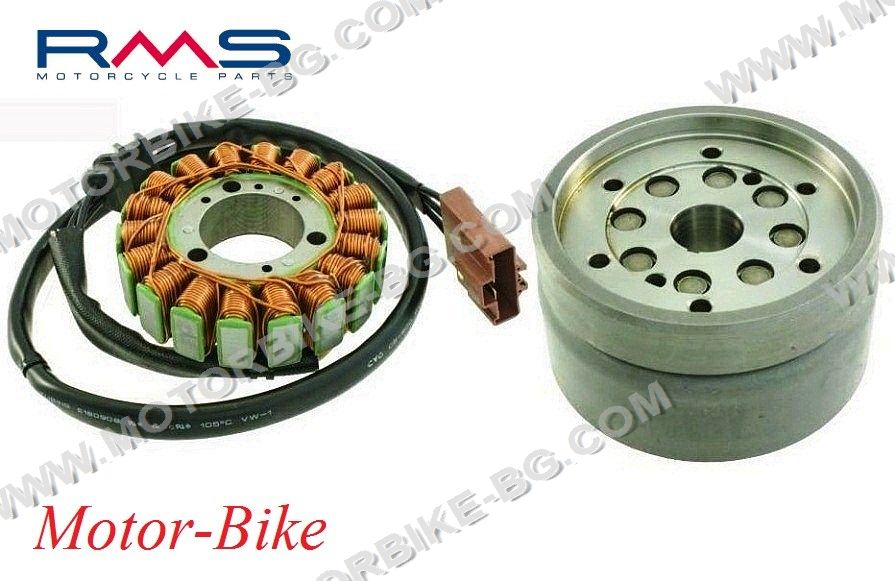

Аlternator assy /Stator - 18 coil - 3 cables, Ø-96mm/ - 12V (Stator bell (Rotor) Ø-98mm) RMS
RMS No.: 246360112
OEM No.: 58080R + 58040R
Applicable to:
APRILIA:
Atlantic Sprint 400 2005-2008
Scarabeo Light 400 2006-2008
Atlantic 500 2001-2004
...
Доставно тегло: 3,500 кг

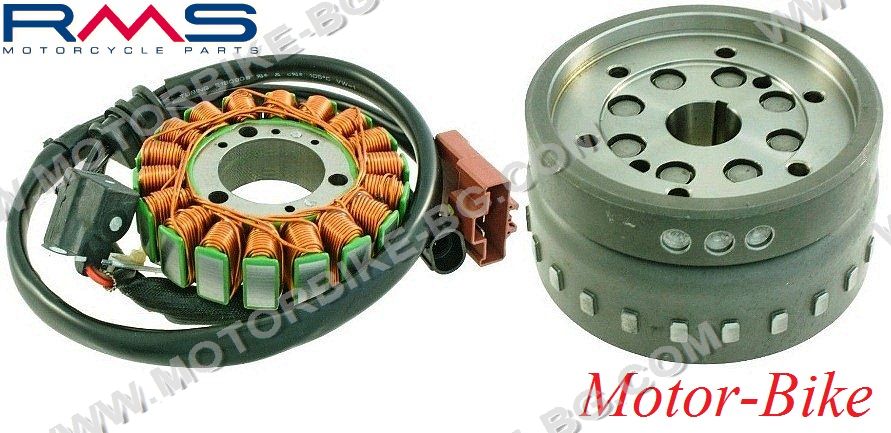

Аlternator assy /Stator - 18 coil - 5 cables, Ø-96mm/ - 12V (Stator bell (Rotor) Ø-98mm) RMS
RMS No.: 246360122
OEM No.: 58108R + 58109R
Applicable to:
APRILIA:
Scarabeo Light 400 2006-2008
Scarabeo Light 500 2006-2008
GILERA:
...
Доставно тегло: 3,500 кг

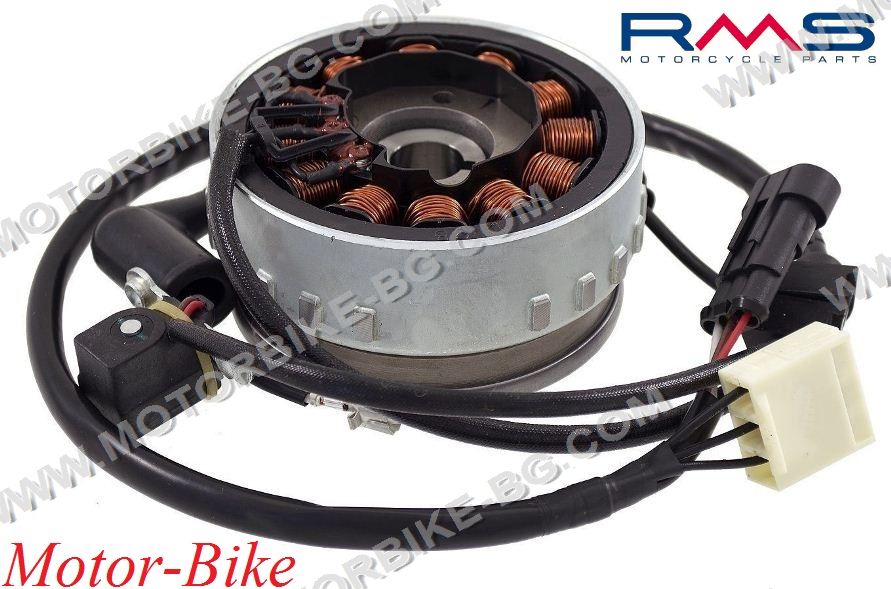

Аlternator assy /Stator - 12 coil - 7 cables, Ø-84mm/ - 12V (Stator bell (Rotor) Ø-86mm) RMS
RMS No.: 246360912
OEM No.: B018107
Applicable to:
PIAGGIO:
Fly 4T 3V Ie E3 Dt 125 2013-2015
Fly 4T 3V Ie Euro3 Lem 125 2012-2013
Liberty 4T 3V Ie E3 125 2013-2014
...
Доставно тегло: 2,500 кг

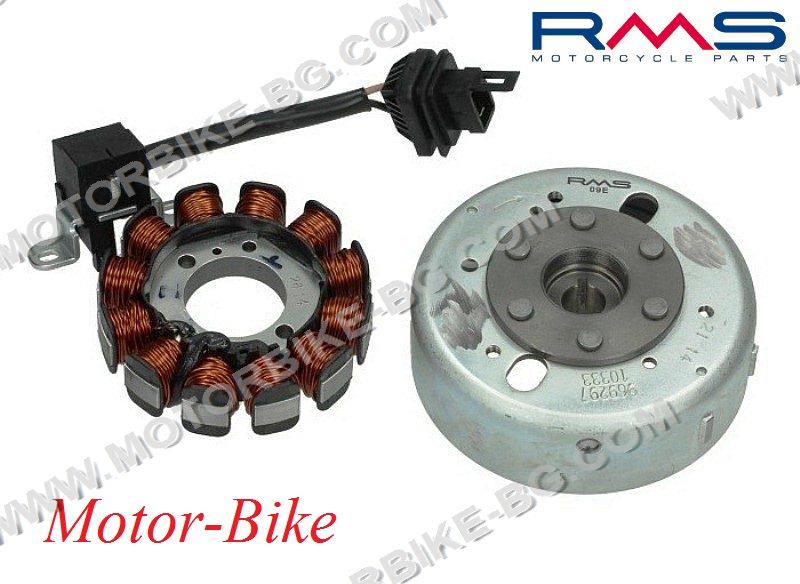

Аlternator assy /Stator - 12 coil - 2 cables, Ø-84mm/ - 12V (Stator bell (Rotor) Ø-86mm) RMS
RMS No.: 246360062
OEM No.: 9692975 (969228 + 969243)
Applicable to:
APRILIA:
Scarabeo 4T 50 2002-2006
Scarabeo 4T Restyling Eu3 50 2006-2009
Sport City One 4T 50 2008-...
Доставно тегло: 2,000 кг

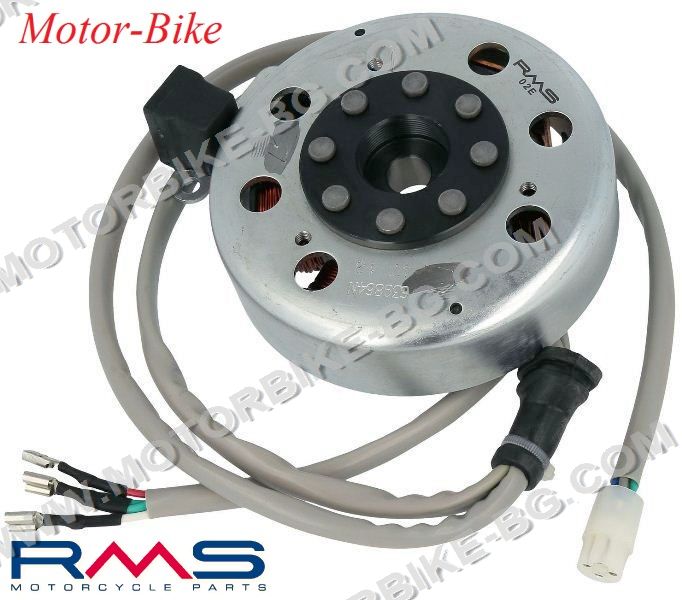

Аlternator assy /Stator - 6 coil - 7 cables, Ø-96mm/ - 12V (Stator bell (Rotor) Ø-98mm) RMS
RMS No.: 246360042
OEM No.: 830293 (830294 + 584526)
Applicable to:
GILERA:
Easy Moving 50 1995-1996
Runner 50 1997-2000
Stalker 50 1997-2002
...
Доставно тегло: 1,700 кг
Stator - Mnarelli (Ducati type) assy /6 coil - 5 cables, Ф-82mm/ 12V / 65W:
Can only replace Ducati type ignition stators (specified on OEM ignition).
External diameter - 82 mm, internal diameter - 26mm, 29 mm / 32 mm / 23 mm, 6 coils, 5 cable
Applicable to:
APRILIA:
AF1 50cc (AM6)
MX 5...
Доставно тегло: 0,500 кг
Stator Minarelli AM6/6J (Ducati type) assy /6 coil - 6 cables, Ф-82mm/ 12V / 65W
OEM reference:
Aprilia: AP8212564/AP8206625
Betamotor: 1120632800
Derbi: 00H03330171
Yamaha/MBK: 1D4H554000
Can only replace Ducati type ignition stators (specified on OEM ignition).
Applicable to:
...
Доставно тегло: 0,420 кг
Stator:
Applicable to:
PIAGGIO:
Ape 50 09-17
Ape FL - FL2 50 89-95
Ape FL3 Europa 50 96-99
Ape Mix 2T 50 98-08
Ape Rst Mix 50 99-03
...
Доставно тегло: 0,840 кг
Stator:
Applicable to:
APRILIA - DERBI - (R.O. 638848)
GILERA - PIAGGIO - (R.O. 58070R • 58112R •
638848)
MALAGUTI - (R.O. 48202000)
Stator 18 poles threephases Ø 95mm
APRILIA:
...
Доставно тегло: 1,150 кг

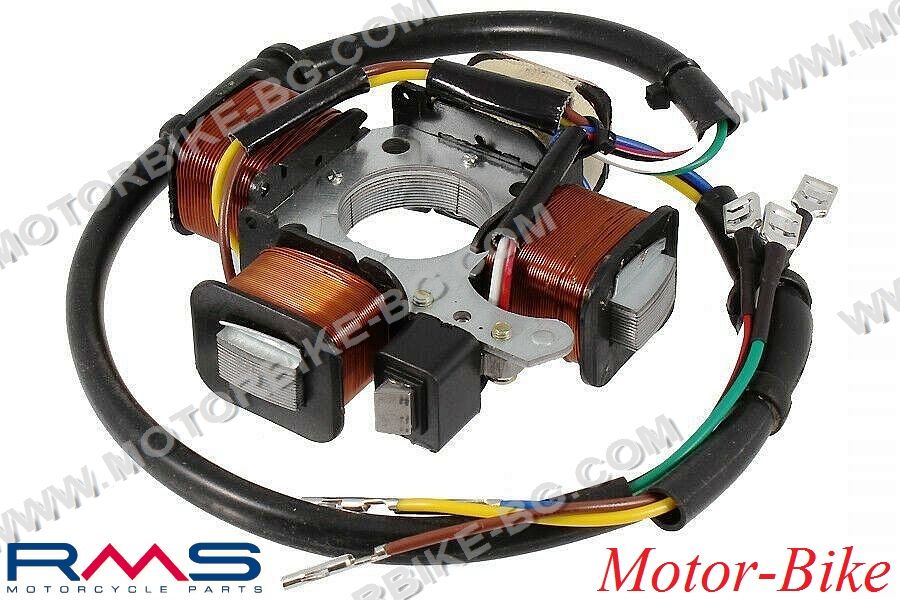

Stator (4 POLES WITH PLATE, 6 cables, Ø105mm) RMS
RMS No.: 246350510
OEM No.: 293814
Applicable to:
PIAGGIO:
PIAGGIO Boss 50 1988-1989 CBS1T
PIAGGIO Bravo 50 P 1981-1987 EEM2T / EEM4T
PIAGGIO Bravo 50 PV 1981-1987 EEV2T / EEV4T
...
Доставно тегло: 0,600 кг
|
