СИМСОН ЦИЛИНДЪР SR4-2 STAR / KR51/1 50ксм 40мм 12мм бутален болт К-Т MZA (MEGU / ALMOT)

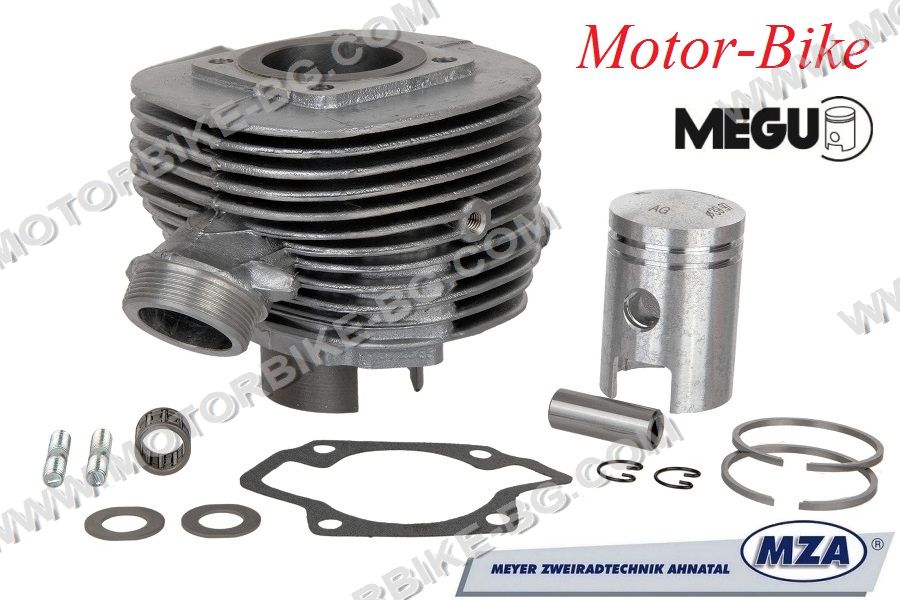

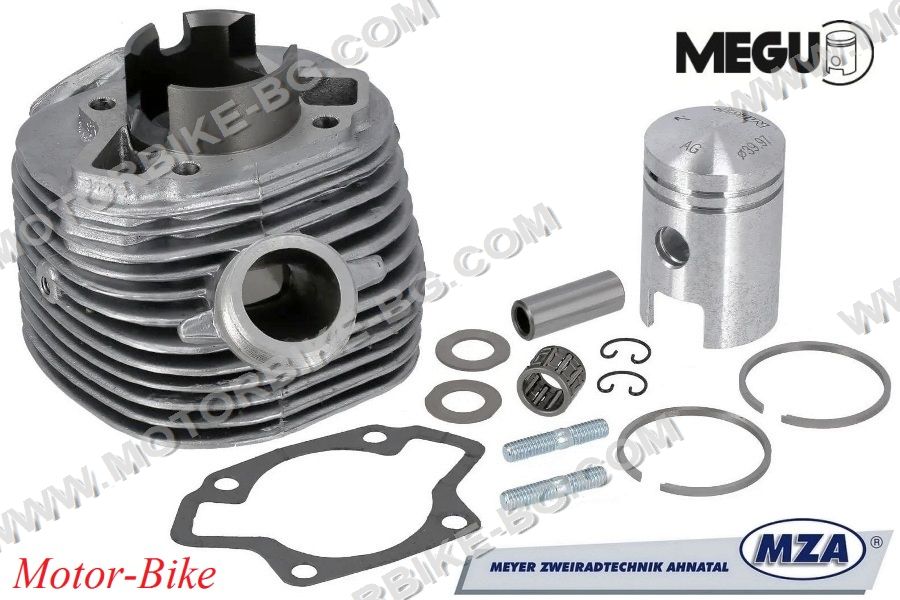

SIMSON Cylinder set ALMOT 50ccm (49.6) 3.4-3.6HP 2T AC 40.00mm (Stroke of the piston: 39.5mm / Bore diameter: 40mm) Inlet: 16mm, outlet: 28mm / 2-channel - MZA
With piston kit MEGU Ø=39.97mm, Piston rings 40.00x2.00 2T Internal gap (2 pcs.)
OrderNo.: 12100-G-A
GTIN/EAN: 4056144175063
PartNo. Simson: 372561
Kit includes:

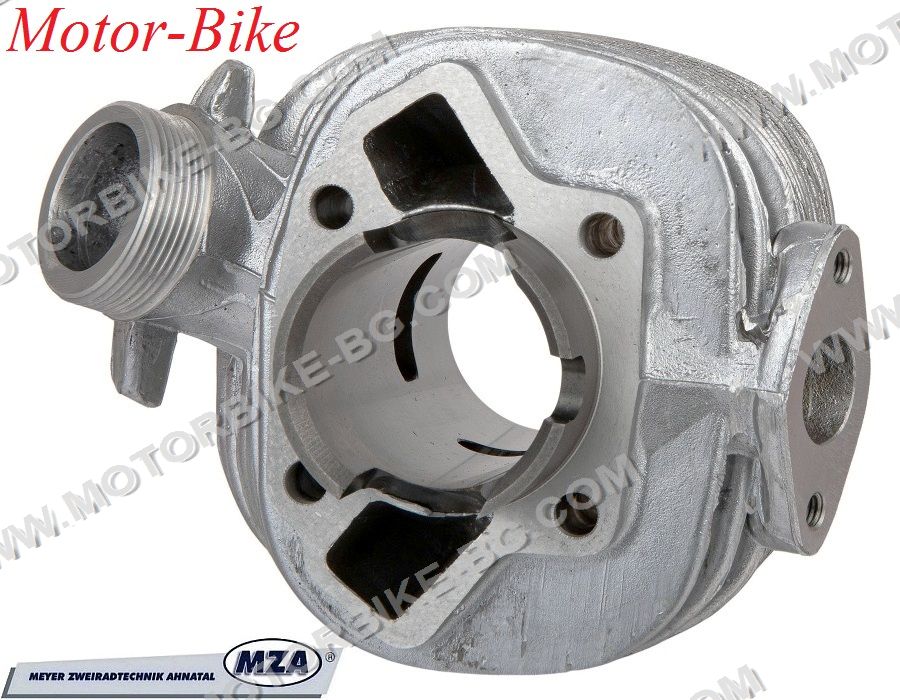

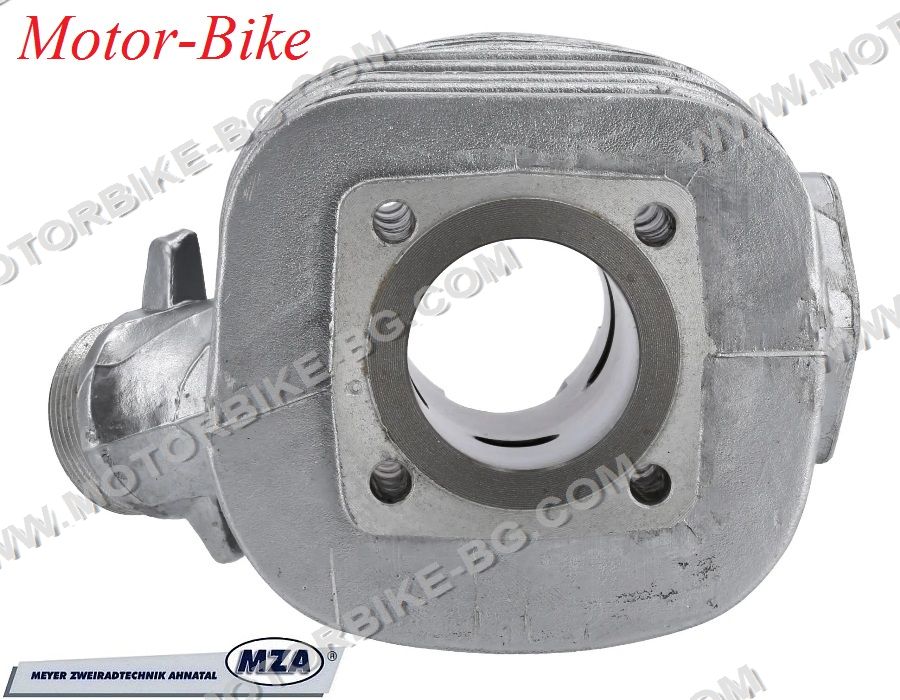

- Cylinder kit M53/1 MZA (Almot) 12100 - Stroke of the piston: 39.5mm / Bore diameter: 40mm / inlet: 16mm, outlet: 28mm / 2-channel
- Cylinder base gasket S50 (50cc) - (Abil) MZA

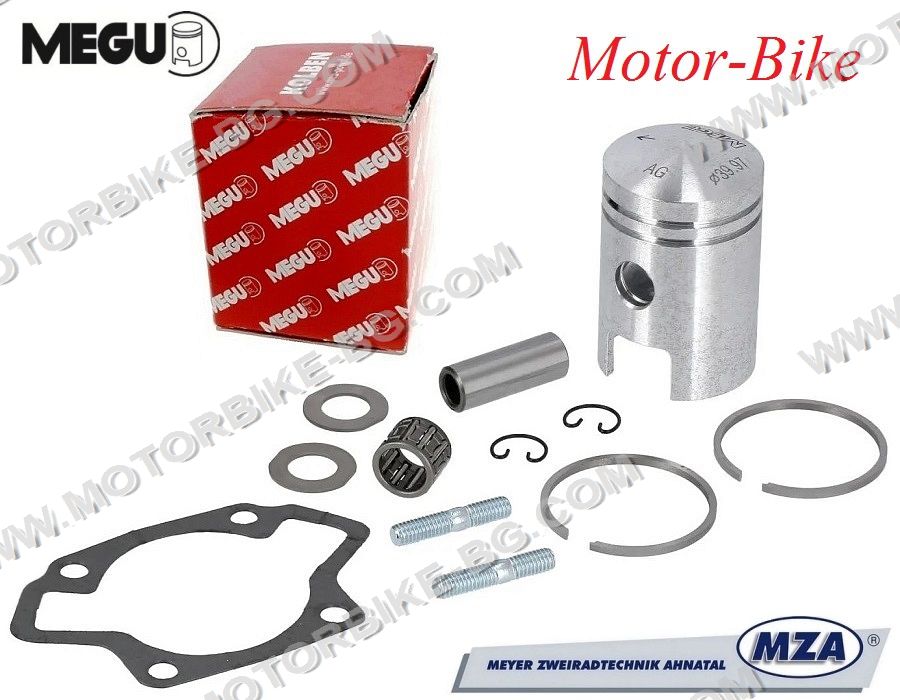

- Piston kit MEGU AG (MZA 10524-GA-F) S50 - Ø39.97mm
- Piston rings MEGU 40.00x2.00 2T F-type Internal gap (2 pcs. set)
- Piston pin MEGU (MZA 10309-A-S) - Ø12x7x31.5mm
- Piston pin clips MEGU - 12x1.05mm (2 pcs. set)
- Shim for piston MZA 10142 - 1.0mm (2 pcs. set)
- Stud bolt MZA 10123-A-S - DIN835 M6x1 - 5.8 - A4K / L-18mm (2 pcs. set)
- Needle bearing MZA 10489 - Ø12x16x13mm / 10 needles (base)
For engines: M53 KF / M53/1 KF / M53 KHL (M53 KFR) / M53/1 KFR / M53/11 AR
Applicable to:
Simson SR4-2 Star (1964 - 1967) / Schwalbe KR51 (1964 - 1968) / KR51F (1964 - 1968) / KR51/1 (1968 - 1980) / KR51/1F (1968 - 1980) / KR51/1S (1968 - 1980) / KR51/1K (1974 - 1980) / SR4-4 Habicht

Meyer Zweiradtechnik Ahnatal - MZA GmbH

Произход: Полша

Доставно тегло: 1,430 кг
