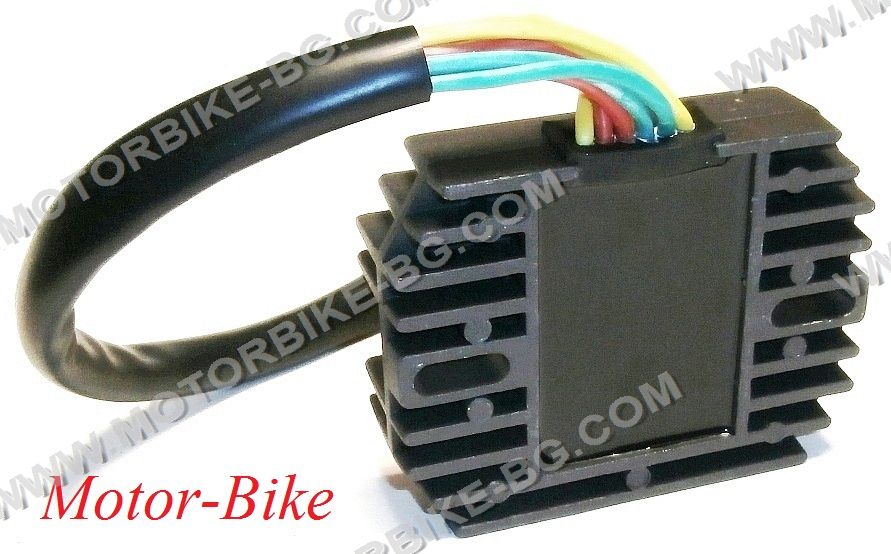

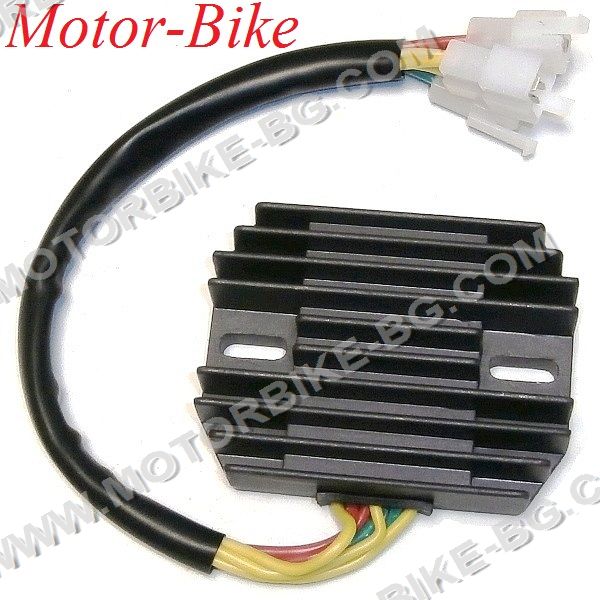

РЕЛЕ ЗА ЗАРЕЖДАНЕ /3+2+2/ ЗА ХОНДА SHADOW VT1100 97-01
|
|
Rectifilter+regulator assy (3+2+2 pin):
Applicable to:
Honda VT1100C Shadow (1987-2007)
Honda VT1100C Shadow Sabre (1995-2003)
Honda VT1100C2 Shadow (1995-2003)
Honda VT1100C3 Shadow Aero (1998-2002)
Honda VT1100D Shadow Ace (1999)
Honda VT1100T Shadow (1998-2001)
Replaces these genuine manufacturers part numbers:
HONDA:
31600-MAA-000
31600-MAA-A10
31600-MM8-008
31600-MAA-A01
31600-MCK-A51
31600-MAH-008
31600-MCK-A01
Specification:
Dimensions:
Width: 80mm
Length: 103mm
Height: 32mm
Fixation holes center to center: 75mm
Wires length: 335mm
Other:
Number of plugs: 3
Number of pins: 7
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 25A-35A/300W-500W
Open Circuit Voltage: <15V
Operation Temperature: -20⁰C to 85⁰C
OEM No.: 31600-MAA-A01
Произход: Китай
Доставно тегло: 0,500 кг
|
|
