СКУТЕР МАГНЕТ GY6-50/70/80 /8 БОБИНИ, 4 КАБЕЛА/ Ф88мм / ПЕЖО V-CLIC 4T 50 |
|||
|
|||

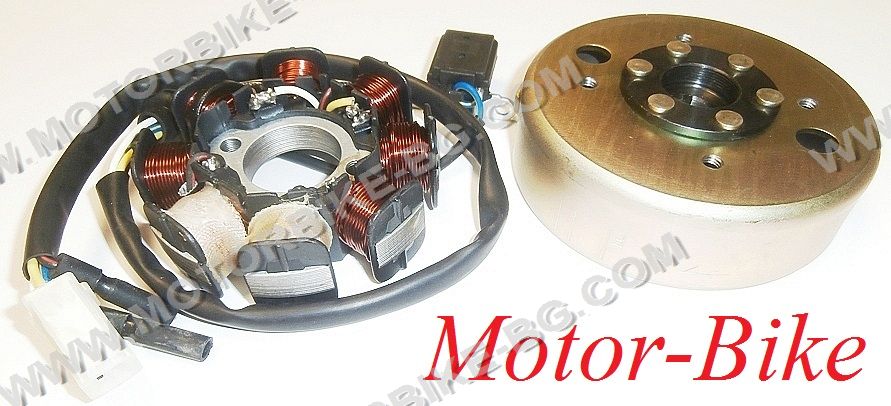

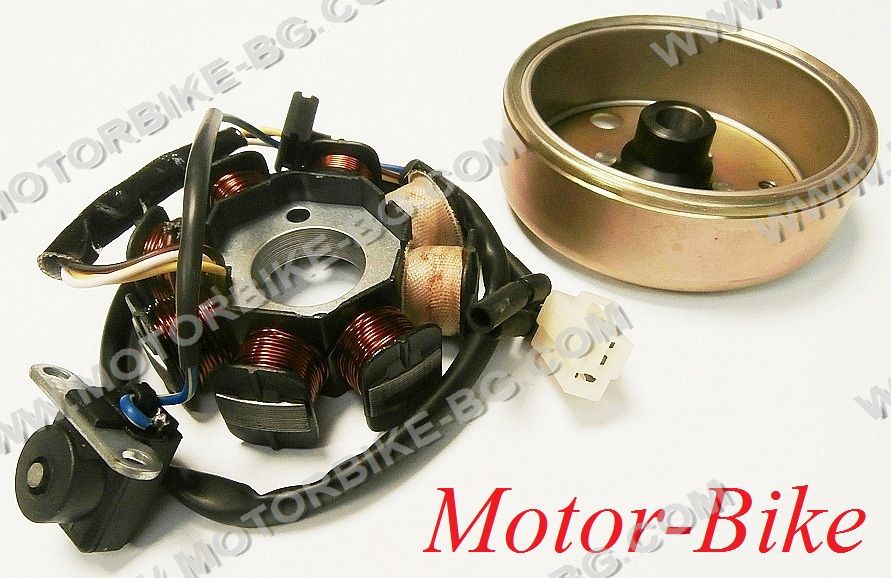

Chinese SCOOTER - generator assy 88mm (8 coils, 4 cable - 2+1+1) 4T 139QMB GY6-50/70/80cc:

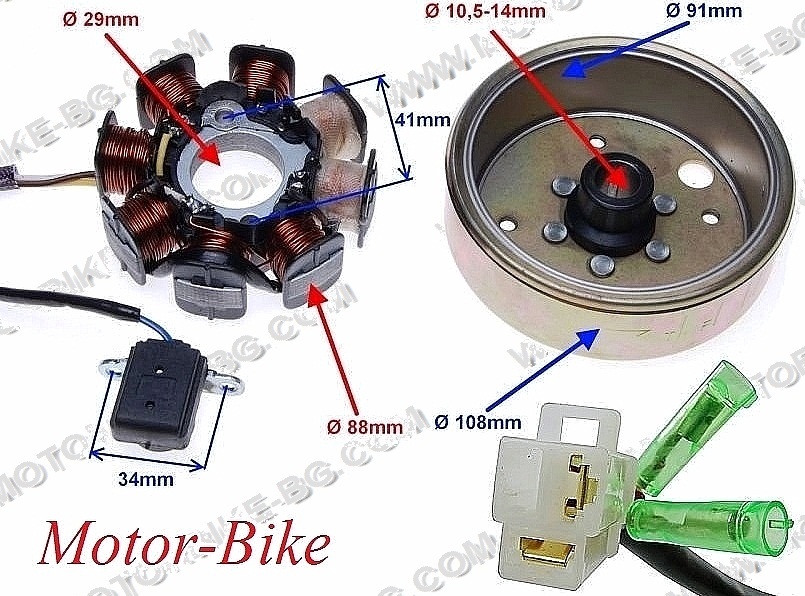

STATOR: stator thickness: 30mm number of coils: 8 sensor thickness: 21mm cable length: 490mm Center inner diameter: 29mm Mounting Bolts Spacing: 41mm (center to center) 4 wires: 2 wires - Yellow, White end in a 3 pin male plug Red, Blue in single pin. Apply: Chinese 4T scooter 139QMB GY6-50/70/80cc Peugeot V-clic 4T 50cc Произход: Китай Доставно тегло: 1,100 кг |
|||
