    | Резервни части за скутери и мотоциклети / Motorcycles & scooters products, spare parts | Скутери китайски 4Т и 2Т / Chinese scooters 2 and 4 stroke | Запалване / Ignition | Магнет, Плочка с бобини / Generator, Stator
    300620
60,00 лв.

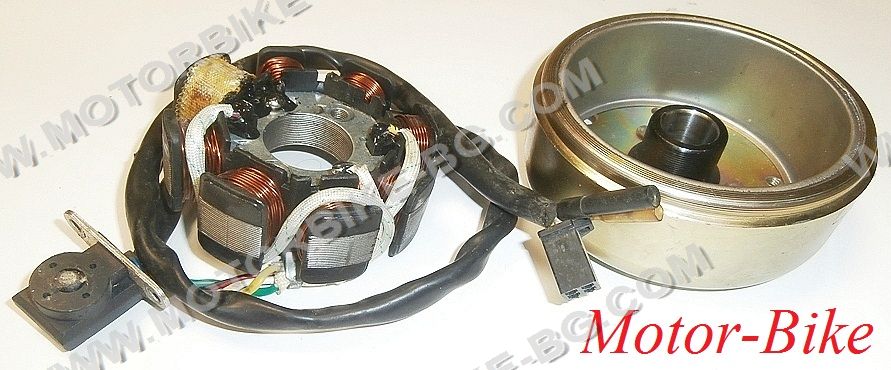

СКУТЕР МАГНЕТ GY6-125/150 /8 БОБИНИ, 5 КАБЕЛА/ Ф88мм
Chinese SCOOTER - generator assy (8 coils, 5 cable - 3+1+1) 4T GY6-125/150cc:
8 coil stator magneto commonly used on 4-stroke 50cc, 125cc and 150cc GY6 scooter engines. Also sometimes referred to as a stator comp.
5 wires:
3 wires - Yellow, Green and White end in a 4 pin male plug.
Red, Blue in single pin.
Overall diameter: 88mm
Center inner diameter: 29mm
Mounting Bolts Spacing: 41mm (center to center)
