    160643
70,00 лв.

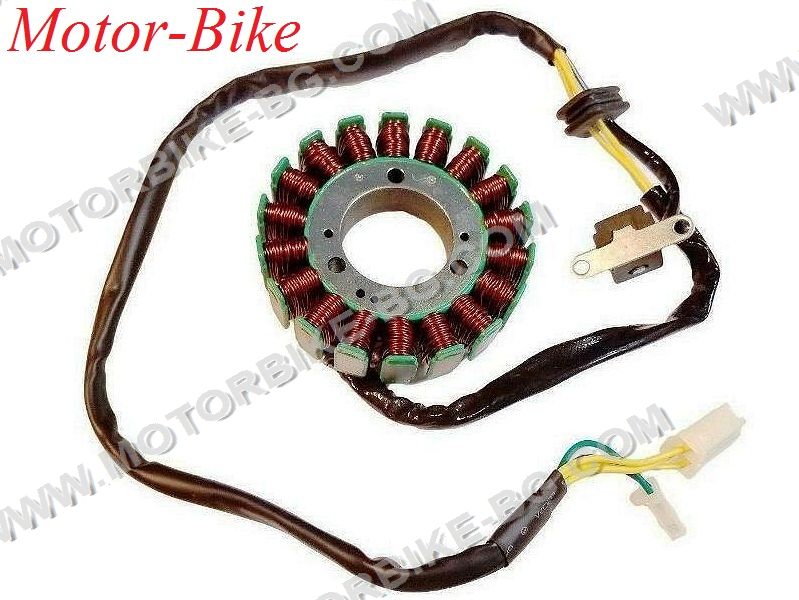

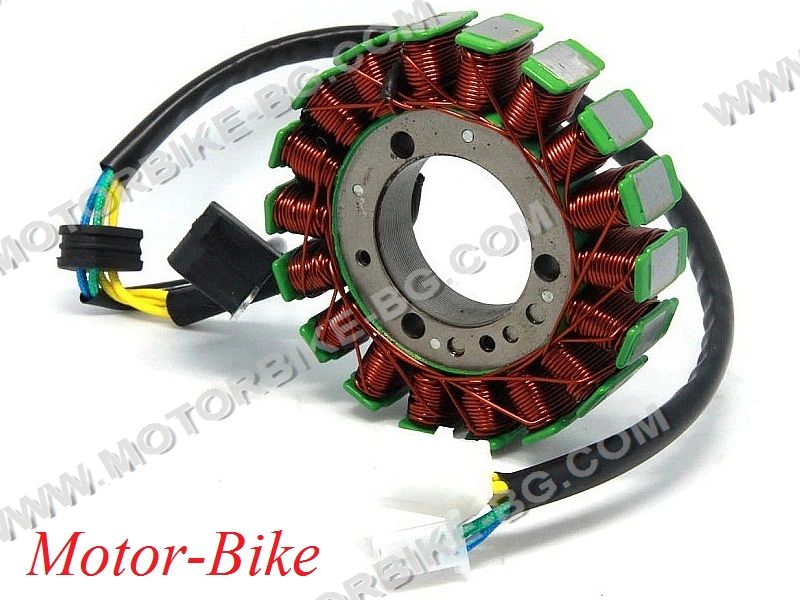

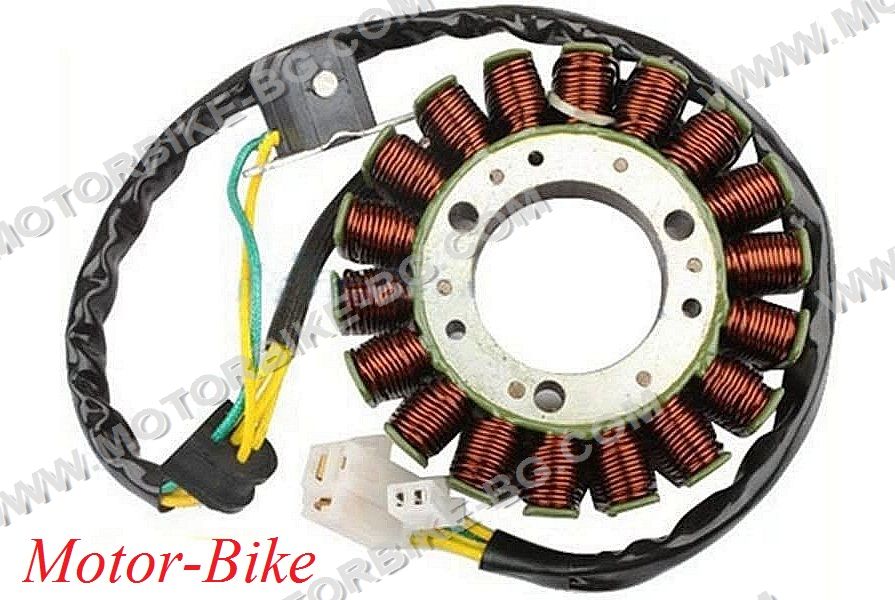

ПЛОЧКА С БОБИНИ ЗА МАГНЕТ / СТАТОР / ЗА ЯМАХА MAJESTY 250 / YP250 / АТВ 250 (18 БОБИНИ 5 КАБЕЛА) Ф93мм
Stator assy (18 poles 5 cables) 93mm:
This an 18 pole, 18 coil, Generator Magneto for the 3 phase 4 stroke liquid cooled Yamaha YP250 LH170MN Linhai VOG 250-300cc engine.
Application:
YP250 MAJESTY 250cc ( -2002)
Before 2002, the YP250 engine use 93mm stator coil, after that all YP250 engine with 104mm.
This is often in the Aprilia Leonardo 250, Aprilia Leonardo 300, Benelli Velvet 250, Diamo Turista, Italjet Jupiter 250, JCL, VOG 260, Linhai Aeolus, Linhai ATV 260, Malaguti Madison 250, Malaguti Password 250, MBK Kilibre 300, MBK Skyliner 250, Renault Kouranos 250, Roketa MC-54 250B, Xingyue VOG 260, Yamaha Majesty 250 (mod. 1999), Yamaha Majesty 250 (mod. 2000), Yamaha Versity 300, Yamaha X-City 250, Yamaha X-Max 250, Yamaha XC 300 and others.... These are used in a variety of ATV and carts also.

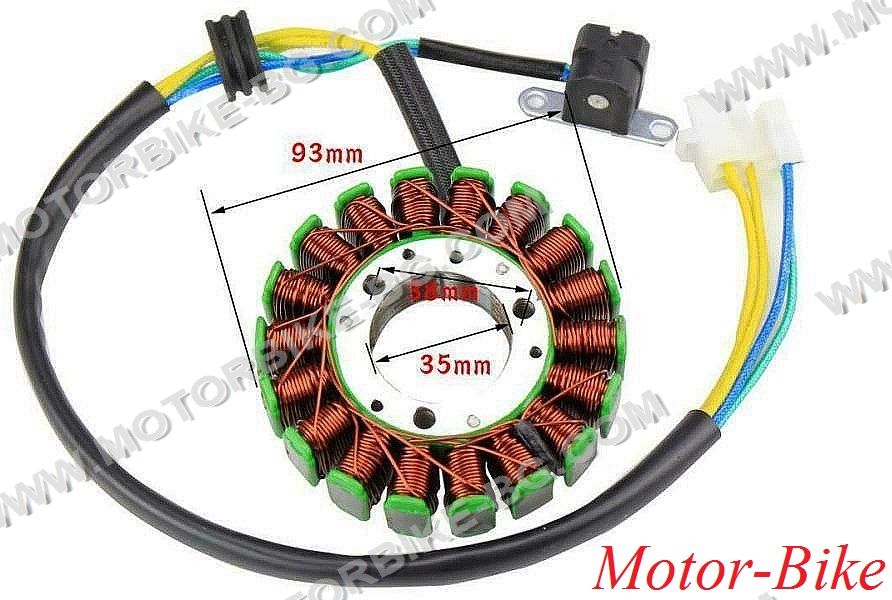

Size:
Overall diameter: 93mm
Center inner diameter: 35mm
Mounting Bolts Spacing: 38mm (center to center)
Stator: 18 coils
Plugs: 3 pin + 2 pin
