    | Резервни части за скутери и мотоциклети / Motorcycles & scooters products, spare parts | Хонда / Honda | Запалване / Ignition | Електронен блок / CDI (Electronic ignition)
    140144
24,00 лв.

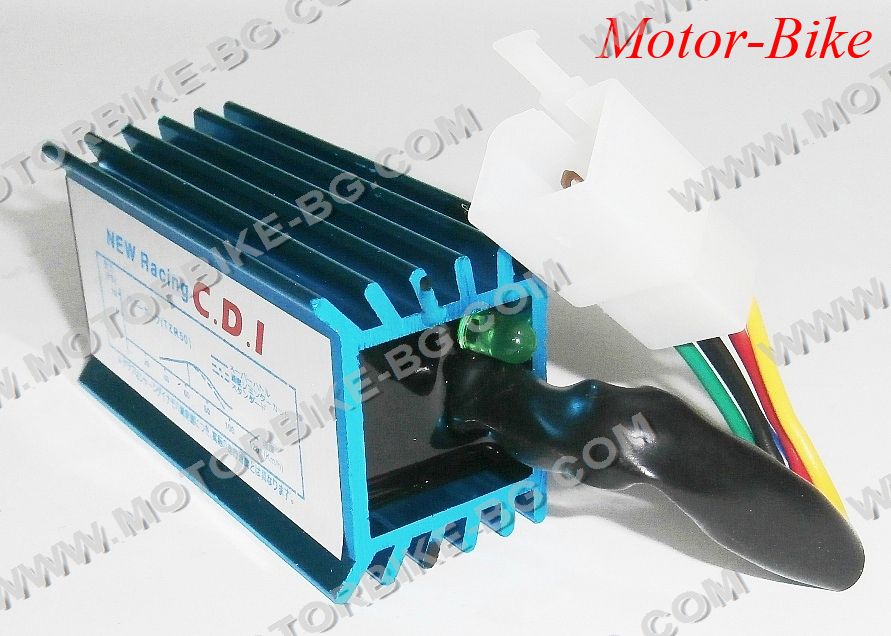

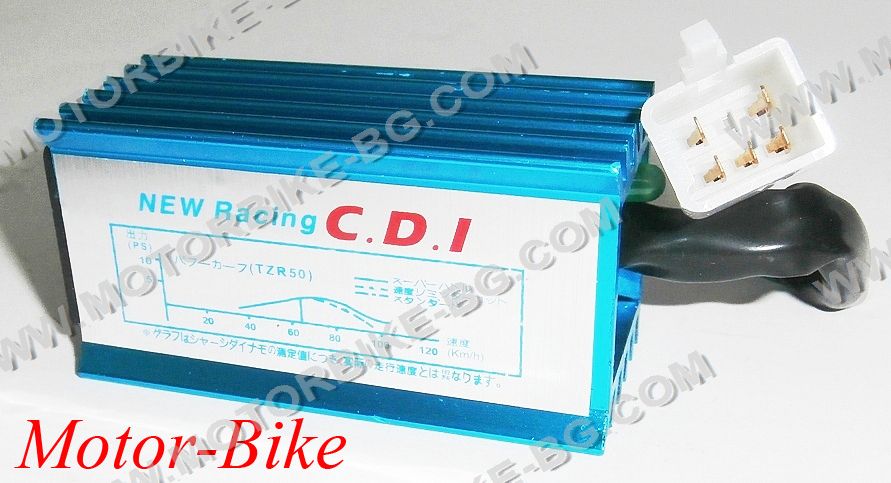

ЕЛЕКТРОНЕН БЛОК ЗА ХОНДА /5/ РЕЙСИНГ AC 11000 оборота 28 градуса - DIO AF18/25 / КИМКО / ПЕЖО / GY6 / АТВ
Еlectronic ignition C.D.I. (5 pin) - 11000 rpm / 28°
This is our Professional Racing CDI. Unlike other Rev-Limiter removal CDI's, This CDI has a aluminum Heat Sync Casing to reduce heat, the #1 cause of performance CDI failure. Also designed to resist vibration and impact, by using a non-conducting silica-sand to fill the inner case. Will also modify acceleration curve! Max RPM increase as high as 11,000 RPM Constant Angle 28° (Most stock are 6,000 RPM).

Dimensions:
Lenght=75mm, Width=37mm, Thickness=30mm

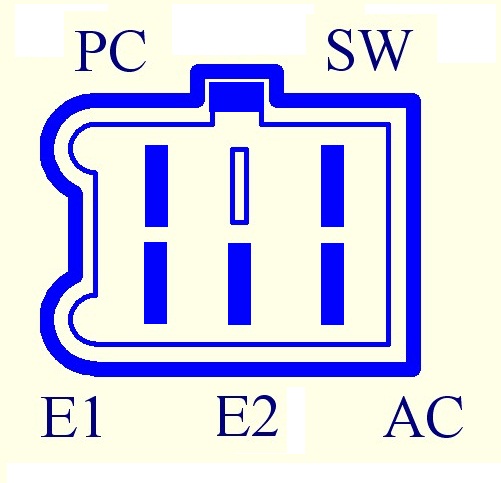

This CDI has a 5 pin square connector as shown.
5 wires: red, black, blue, yellow and green end in a 6-pin female plug

Applicable to:
DIO-50 / JH-70 / DY-100 scooter engines, ranging in engine displacements of 50cc, 70cc, 90cc, 110cc, 125cc, & 150cc.
Honda SH 50 H (-1995) / Honda DIO 50 AF18/25
KYMCO DJX-DJY 50
PEUGEOT SC 50 / BUXY 50 / ZENITH 50 / SQUAB 50 / SPEEDAKE 50
Also fits: China base GY6 engine, Honda cloned GY6 engine that use AC powered CDI ATV Quads & Scooter

Make sure this parts fits your particular model. Many bikes have the same name but use different parts depending on the year of manufacture.
