    260186
270,00 лв.
СИМСОН ЦИЛИНДЪР S51 70ксм 45мм 12мм бутален болт К-Т MZA ТУНИНГ (4 канала - 1 сегмент)
SIMSON Cylinder kit 70cc (Up to 11Hp!) 2T AC 45.00mm - MZA Tuning
OrderNo.: 12600T
GTIN/EAN: 4056144057468
PartNo. Simson: 222052
ITEM FEATURES:

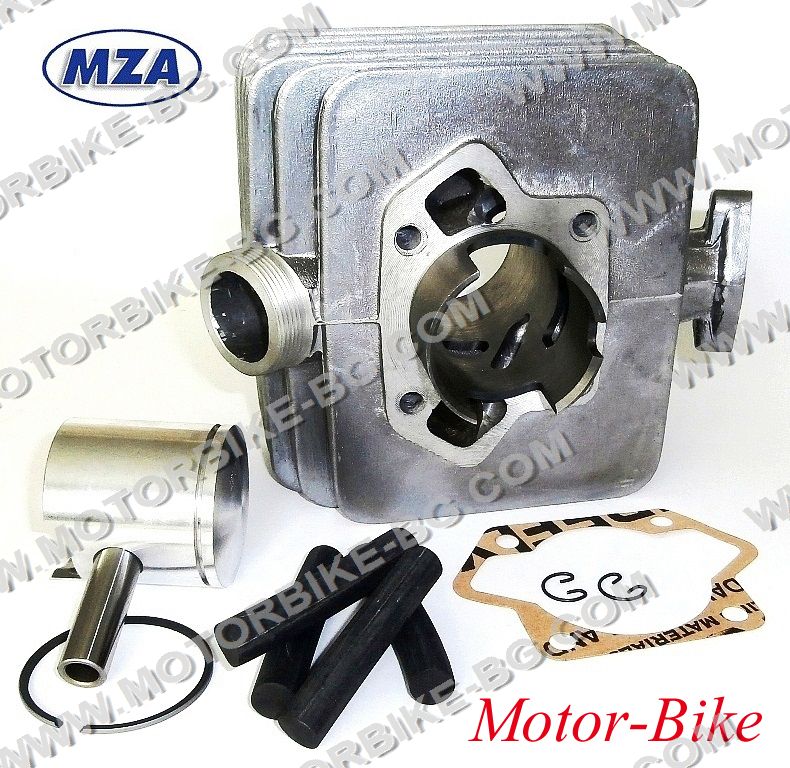

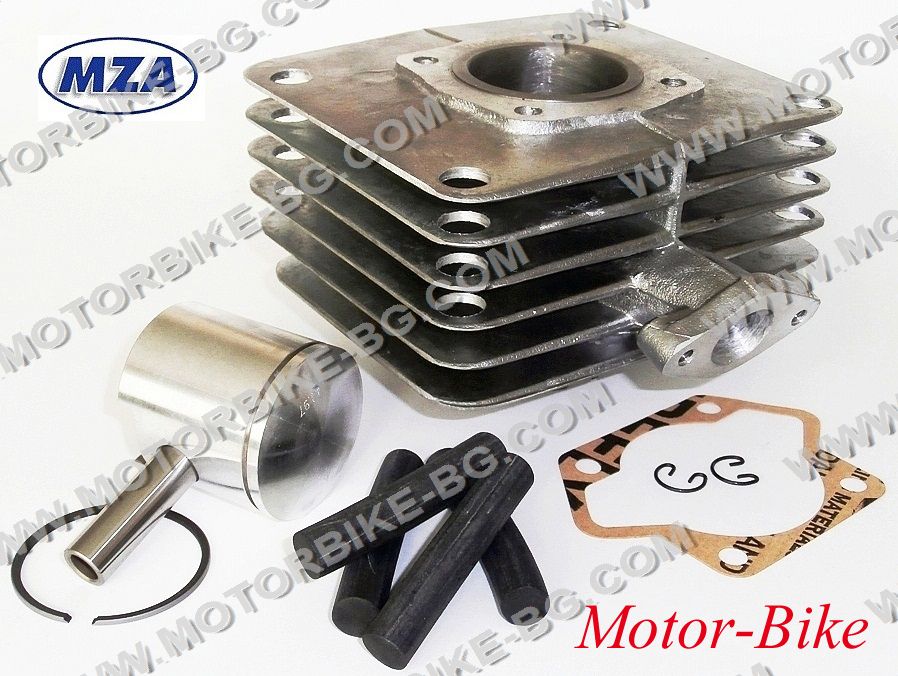

The cylinder is supplied with a piston 45.00 mm, 1 piston ring 45.00x1.50 mm, piston pin 12x38 mm, 2 safety clips 12 mm, base gasket and 4 damping rubbers.
Execution: MZA SP-70-4(1) Tuning
Displacement in cc: 70
Inlet port in mm: 19.00
Outlet port in mm: 25.00

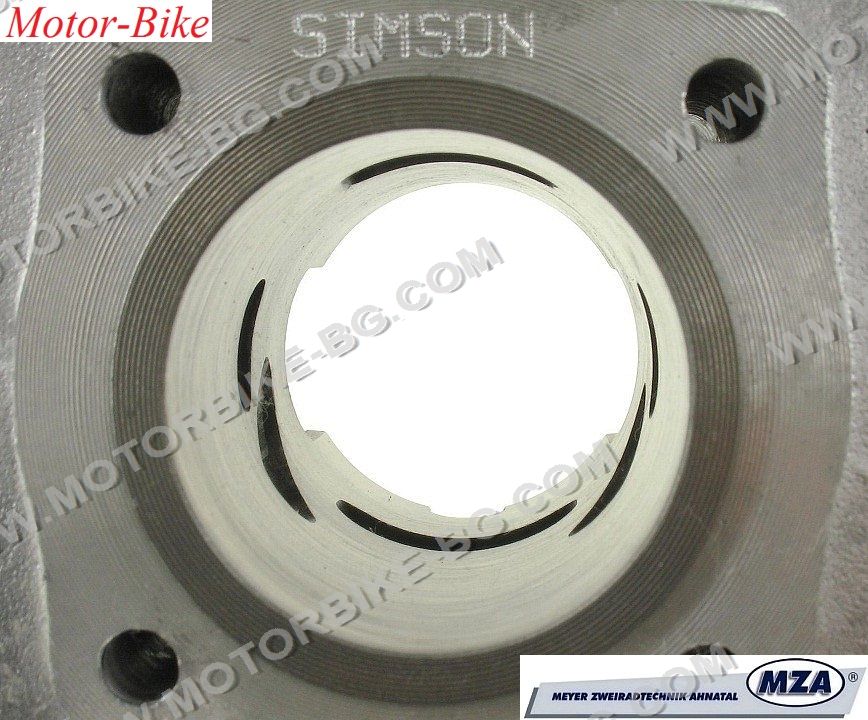

Variant: 4-channel
Cylinder diameter in mm: 45.00
Piston diameter in mm: 44.97
Stroke of the piston in mm: 44.00
Number of piston rings: 1
Piston rings diameter in mm: 45.00
Piston rings thickness in mm: 1.50
Piston rings type: Side gap F-Type
Outside diameter of the bush in mm: 50
Assembly: Engine & Parts
Cylinder has two additional overflow channels (handmade), is suitable for everyday use, powerful even from the lower speed range, durable and promises pure driving pleasure!
Performance peaks of up from 9 to 11hp are possible! (Depends on the carburetor, cylinder head and exhaust)

Applicable to:
Suitable for vehicle manufacturers: Simson
For engines: M741 EFS / M741/1 KF / M741/2 KF
Vehicle type: S70, S83, SR80CE

Tip: This S70 cylinder can also be mounted on the Simson S51 / S53 / ROLLER SR50 / SCHWALBE KR51/2 / S61 by unscrewing the motor housing.

Please note:
When converting or regenerating engines or cylinders, it is essential to check the control times and adjust them if necessary.

Meyer Zweiradtechnik Ahnatal - MZA GmbH
